ZU-820-TST
| Model |
|
| Display Technology |
|
| Brightness |
|
| Contrast Ratio |
|
| Light Source |
|
| Throw Ratio |
|
| Zoom & Lens Shift |
|
| Audio |
|
| Noise Level |
|
| Features |
|
3 days Service Centre Replacement
Free Delivery (Charges may apply by location)
Original Brand Product
OPTOMA
Delivery within 3-5 days via Blue Dart.
Secured Transaction
Share your thoughts with other customers
Q: What’s the actual brightness?
A: Offers 8,200 center lumens with an ANSI rating of around 6,900 lumens—still plenty powerful for large venues .
Q: How maintenance-free is it?
A: Its sealed DuraCore laser and IP5X optical engine deliver up to 30,000 hours in Eco mode with nearly no maintenance .
Q: How adaptable is the setup?
A: Very—motorized zoom, focus, and dual-axis lens shift simplify installation, even in tight or angled spaces .
Q: Can it support projection mapping or blending?
A: Yes—integrated warping and edge blending remove the need for external processors, enabling complex display setups .
Q: How flexible is the mounting?
A: Supports portrait orientation and full 360° rotation, ideal for signage, immersive exhibits, and unconventional displays .

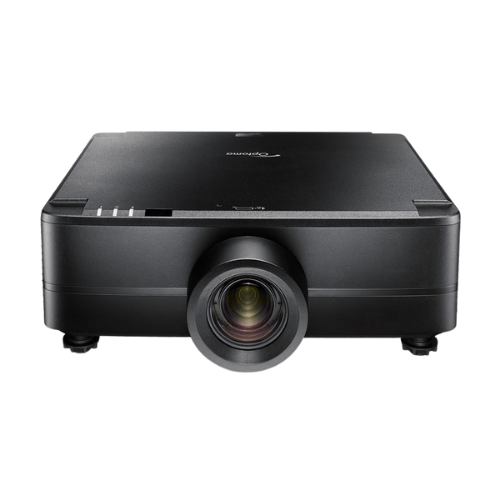

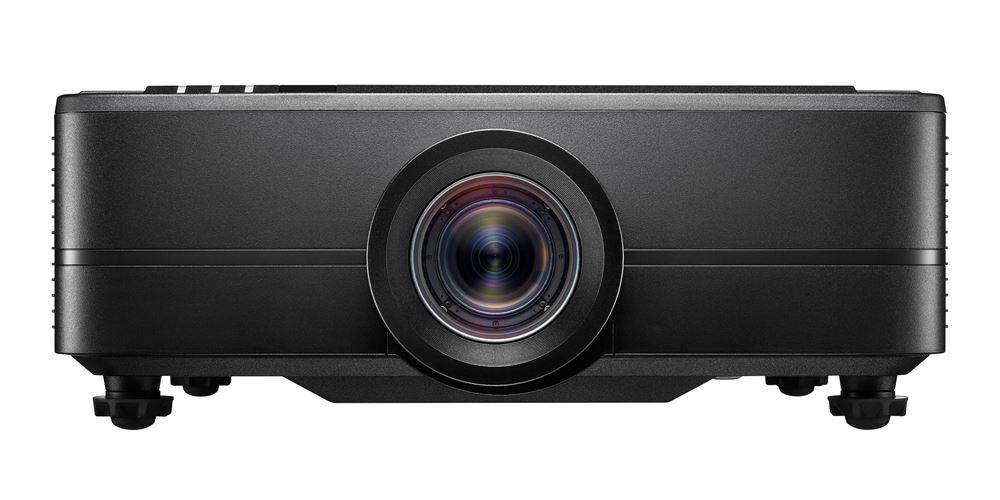

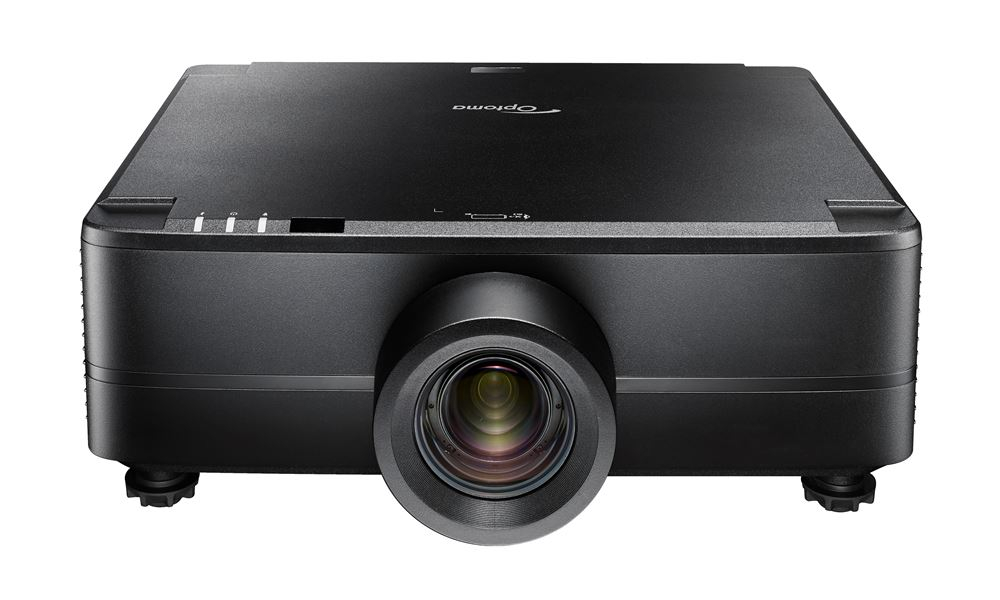

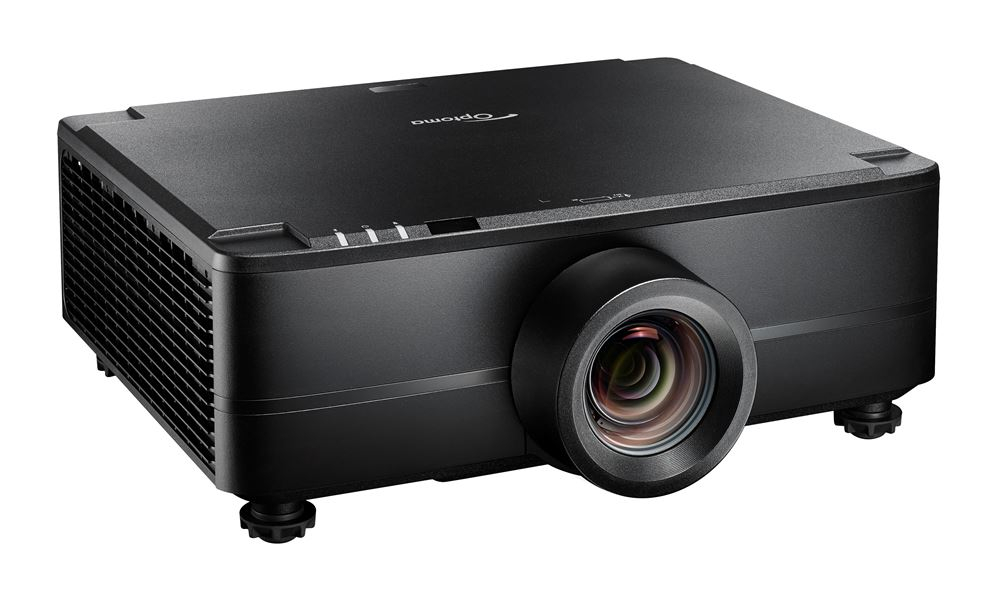

Optoma ZU820TST is a high-performance WUXGA short-throw laser projector engineered for demanding, immersive installations. Boasting a bright 8,200 lumens output and a sealed DuraCore laser for up to 30,000 hours of reliable use, it thrives in environments where brightness and endurance matter most.
Its short-throw optics (0.75–0.95:1), paired with motorized zoom, focus, and lens shift, deliver precise setup flexibility, while features like edge blending, HDR/4K compatibility, and 360° orientation open doors to creative display possibilities—from simulations and projection mapping to in-the-round installations. Rugged, quiet, and easy to control via HDBaseT and LAN, the ZU820TST offers an "install and forget" experience for professional-grade projection.
Industry leading lifetime is achieved using Optoma’s DuraCore technology. Implementing advanced laser diode cooling techniques and an innovative dust resistant design.
Advanced light sensing technology allows the setting of brightness levels that will remain unchanged over time. Ideal for ensuruing constant brightness for fine tune installations
Allows users to set the power levels to meet individual installation requirements. Power levels can be managed to obtain the brightest picture or longest light source life - or anywhere inbetween
Optoma projectors can display true 3D content from almost any 3D source, including 3D compatible graphics cards, 3D broadcasting and the latest generation 3d media servers.
Uncompromising, uncompressed Full HD video, audio, network and control commands all delivered on a single CAT- type cable capable up to 100 meters/328 feet without signal loss makes installation hassle-free. HDBaseT™ simplifies cabling requirements and reduces installation complexity saving both time and reducing costs.
Simplify installation with full lens shift, which provides a wider range of projector placement possibilities. This makes it easier to position the projector in your room and enables a wider range of screen size options.
Images can be projected over a 360° rangealong the projector’s horizontal axis.
*For more information please refer to the user manual
This model is able to receive comands via telenet allowing for easy installation with Telnet compatible control systems.
Independently tested and certified to IEC standard 60529 with an IP5X dust resistance rating. Outstanding dust resistance combined with exceptional brightness ensures industry leading durability; paramount for 24/7 maintenance free operation in challenging environments.
PJLink protocol is incorporated into the projector allowing for easy installation with PJLink compatible control systems.
Integrated warping and edge blending processor enables multiple projectors to be warped and blended without additional dedicated hardware, reducing the cost & complexity of installation. Warping and edge blending is configured using either the projectors on screen display or with PC software depending on model.
Compatible multi output graphics card with overlap function is required.*

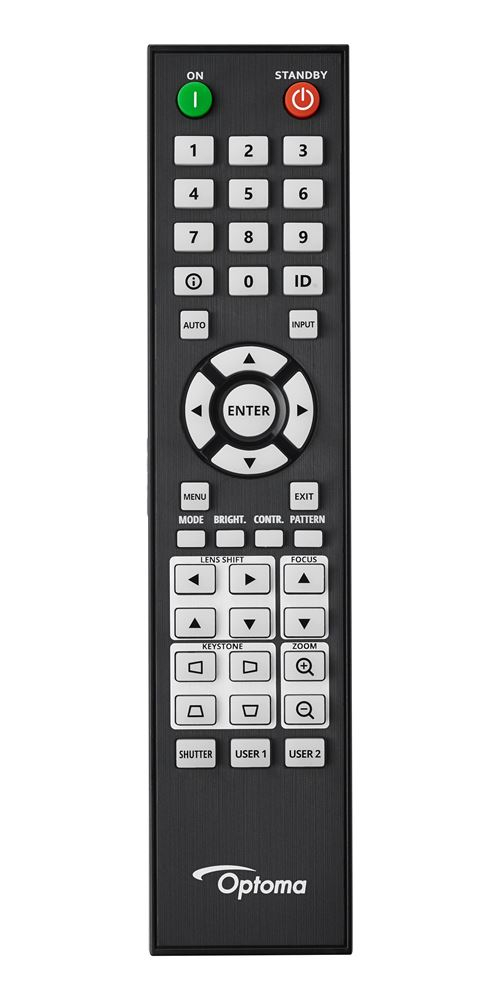

The wired remote connection allows all aspects of the projector to be individually controlled without requiring a line-of-sight to the projector; invaluable when using multiple units during live events.
Capable of receiving and displaying HDR meta data, Optoma HDR compatible projectors allow you to see far more detail and texture. Objects look more solid and life like and the extra detail creates a greater sense of depth. It’s like looking through a window.
Adjust the keystone in both the vertical and horizontal plane. You can individually warp each corner of the image to create a perfectly square image. Ideal for uneven walls or where projector placement is awkward and needs to be installed at an angle.
Ideal for digital signage applications you can rotate your projector 90 degrees to project a portrait image.
The RJ45 port provides additional network controllability. Crestron RoomView, Extron’s IP Link, AMX dynamic device discovery and PJ-Link protocols are fully supported, allowing for any flexible networking solution.
| Category | Specification |
|---|---|
| Display | DLP, WUXGA (1920×1200), 16:10; 3× color wheel; 10-bit color depth; 95% uniformity |
| Brightness | 8,200 lumens (center), 6,900 ANSI; Contrast: Dynamic 3,000,000:1, FOFO 1,100:1 |
| Optics | Short-throw throw ratio 0.75–0.95:1; Projection distance ~0.79–6.21 m; Zoom 1.26× motorized; Lens shift V ±50%, H ±15% |
| Light Source | DuraCore laser, 30,000-hour lifespan, IP5X, 24/7 and 360° operation supported |
| Audio | Two 10 W internal speakers |
| Connectivity | Inputs: HDBaseT, HDMI 2.0, HDMI 1.4a (3D), VGA, 3D sync, 3.5 mm audio. Outputs: HDMI 2.0, 3D sync, USB-A (1.5 A), 3.5 mm audio. Control: 12 V Trigger, RJ45, RS-232, wired remote |
| Features | HDR & 4K input, edge blending, four-corner correction, True AV Mute, HDBaseT, LAN control, 360°/portrait modes |
| Performance | Noise: 34 (Eco)/36 dB; Power: 260–520 W standby 0.5 W; Security: Kensington lock, security bar |
| Physical | Size: 486 × 394.5 × 185.5 mm (HxWxD) ~27.8 lbs (12.6 kg) |
